| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | U-Type |
| Threads per Inch (TPI) | 24 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0032″ | Body Material | Carbide |
| Grade | AC22A | Thread Form Type (THFT) | UN60 |
| Coating | TiAlN | Unit | I |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0512″ |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | |
Product Features
| Family Description | Internal Left Hand American UN Full Profile (UN, UNC, UNF, UNEF) 2-Tooth Laydown Threading Inserts for Gen. Industries | FamilyName | IL-UN-2M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

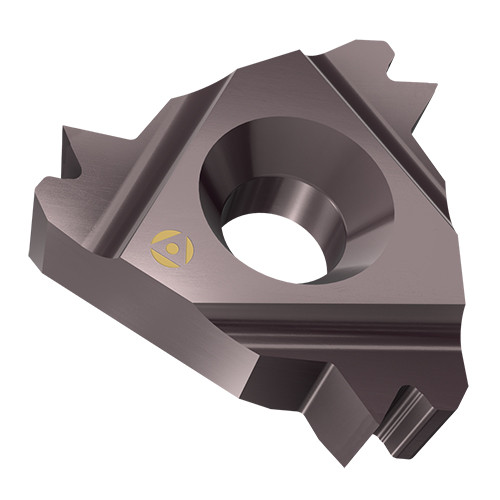

Laydown Threading Indexable Inserts
FamilyName
IL-UN-2M
BrandName
Tool-Flo
