| Thread Size | M6 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1 mm | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.189″ | Grade | AC22 |
| Overall Length (OAL) | 2.244″ | Depth of Cut Maximum (APMX) | 0.4016″ |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

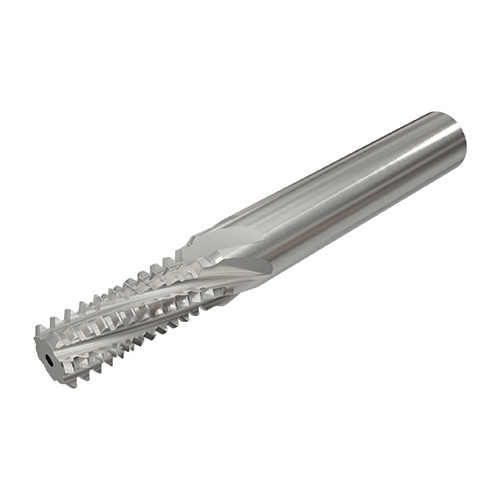

| Family Description | Solid Carbide Internal Threading Endmills with Coolant Hole for ISO Thread Profile | COO | Israel |
