| Thread Size | - | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.411 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 18 | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.492″ | Grade | AC22 |
| Overall Length (OAL) | 4.134″ | Depth of Cut Maximum (APMX) | 1.0236″ |
| Flute Count (NOF) | 8 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | | Unit | I |
Product Features

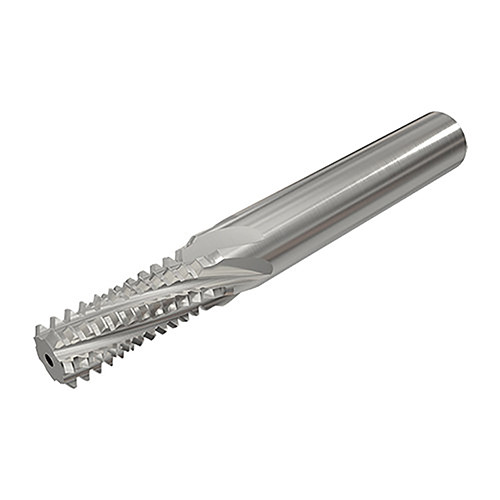

| Family Description | Solid Carbide Internal Threading Endmills with a Coolant Hole. Intended for UN Thread Profile | COO | Israel |
