| Thread Size | 3/8″ | Applicable Material | | Hard Materials | |
| Thread Pitch (TP) | 1.587 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 16 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.291″ | Grade | AC222 |
| Overall Length (OAL) | 2.874″ | Depth of Cut Maximum (APMX) | 0.6575″ |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
| Coating | TiAlN | Unit | I |
| Application | | Internal Thread Milling | |
Product Features

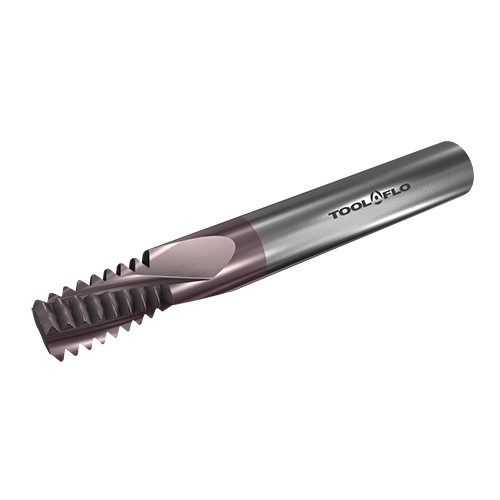

| Family Description | Small Diameter Solid Carbide Internal UN Profile Threading and Chamfering Endmills, for Hard Materials up to 62 HRC, High Temperature Alloys and Titanium Alloys | COO | Israel |
