| Thread Size | - | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 12 | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.47″ | Grade | AC22 |
| Overall Length (OAL) | 3.307″ | Depth of Cut Maximum (APMX) | 1″ |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | | Thread Form Type (THFT) | NJ60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features

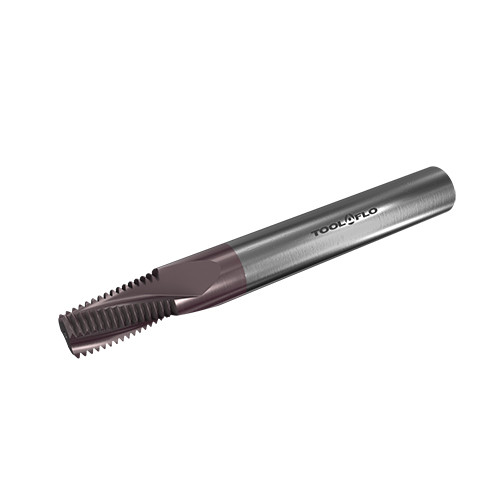

| Family Description | Solid Carbide Threading Endmills with UNJ Form for External Threading | COO | Israel |
Shipping Info
Weight per item
0.0000
