| Thread Size | - | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 0.5 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.3228″ |
| Cutting Diameter (DC) | 0.126″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.283″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 0.3228″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features

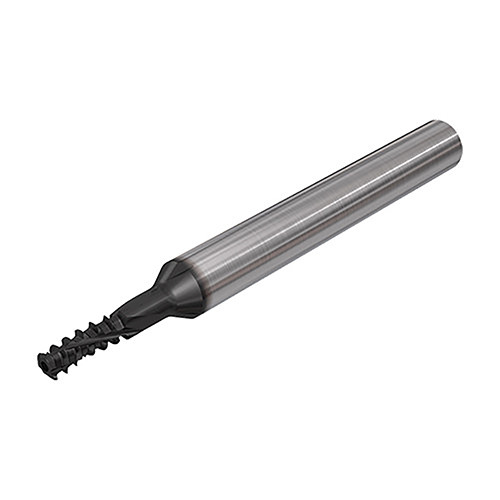

| Family Description | Solid Carbide Internal Threading Endmill Step Release, Lead x2 With Coolant Hole, Used for ISO Thread Profile | COO | Israel |
Shipping Info
Weight per item
0.0000
