| Thread Size | M5 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 0.8 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.154″ | Grade | AC22 |
| Overall Length (OAL) | 2.283″ | Depth of Cut Maximum (APMX) | 0.5197″ |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

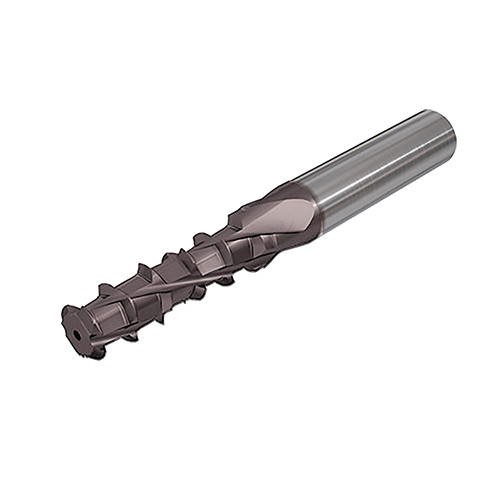

| Family Description | Solid Carbide Internal Threading Endmill Step Release, Lead x3 With Coolant Holes, Used for ISO Thread Profile | COO | Israel |
Shipping Info
Weight per item
0.0000
