| Connection Diameter Machine Side (DCONMS) | 2.48″ | Master Insert Identification (MIID) | 16IR A 55 |
| Minimum Bore Diameter (DMIN) | 1.732″ | Body Material | Steel |
| Shank Size (SS) | 2.48000000 | Usable Length (LU) | 3.15″ |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Application | | Int. Grooving | Internal Thread Turning | Internal Threading lay down | | Functional Length (LF) | 4.134″ |
| Functional Width (WF) | 0.925″ |
Product Features

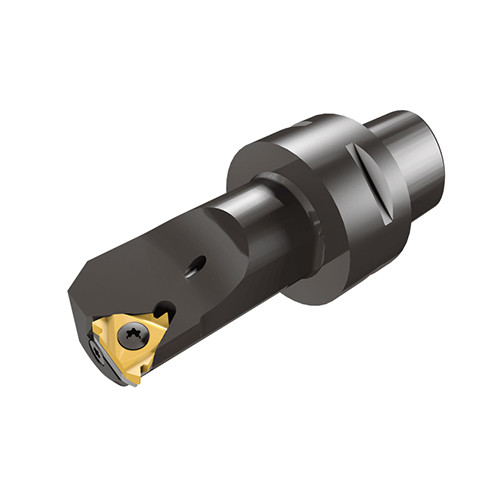

| Family Description | Internal Threading Bars with CAMFIX Exchangeable Shanks | FamilyName | C#-SIR/L |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Holders
FamilyName
C#-SIR/L
BrandName
Tool-Flo
