| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.498″ | Threads per Inch Minimum (TPIN) | 0 |
| Threads per Inch (TPI) | 11.5 | Threads per Inch Maximum (TPIX) | 0 |
| Corner Radius (RE) | 0.003″ | Tool Type | Threading Regular Inserts |
| Grade | AC22C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Application | | Threading Inserts | | Thread Form Type (THFT) | LPT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.041″ |
Product Features
| Family Description | External Right Hand LPT (Line Pipe Taper) Threads Full Profile Laydown Inserts for Oil, Gas and Water Pipes | FamilyName | ER-LPT |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

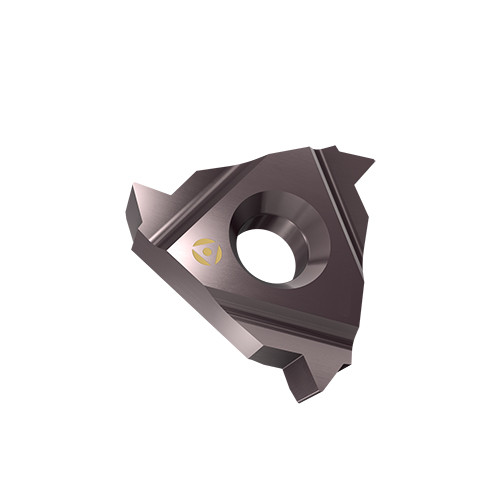

Laydown Threading Indexable Inserts
FamilyName
ER-LPT
BrandName
Tool-Flo
