| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.87″ | Threads per Inch Minimum (TPIN) | 5 |
| Thread Pitch (TP) | 0 mm | Threads per Inch Maximum (TPIX) | 5 |
| Threads per Inch (TPI) | 5 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0″ | Measurement Type | Inch |
| Grade | AC50D | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | BUT |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | Ext Threading Laydown | | Profile Distance EY (PDY) | 0″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Internal Right Hand API Buttress Full Profile Laydown Threading Inserts | FamilyName | IR-API-BUT |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

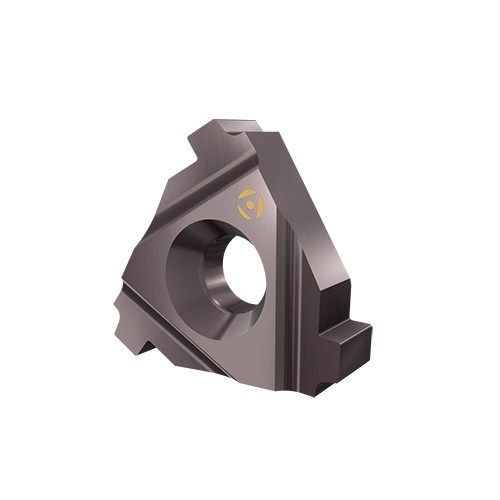

Laydown Threading Indexable Inserts
FamilyName
IR-API-BUT
BrandName
Tool-Flo
