| Inscribed Circle Diameter (IC) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1.063″ | Threads per Inch Minimum (TPIN) | 0 |
| Threads per Inch (TPI) | 11.5 | Threads per Inch Maximum (TPIX) | 0 |
| Corner Radius (RE) | 0.0035″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 3 |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.1299″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

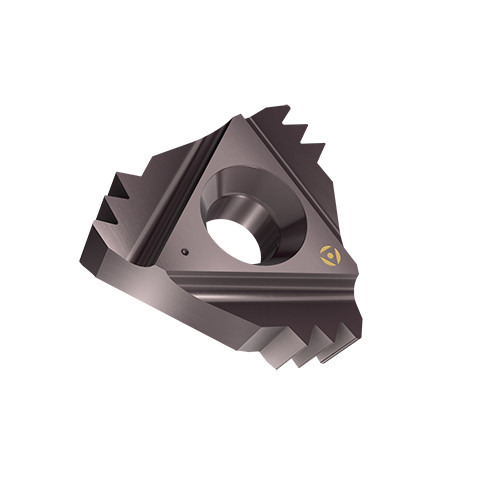

| Family Description | External Right Hand NPT (National Pipe Threads) Full Profile3-Tooth Laydown Thread.Inserts for Steam,Gas and Water Pipes | FamilyName | ER-NPT 3M-Q |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
ER-NPT 3M-Q
BrandName
Tool-Flo
